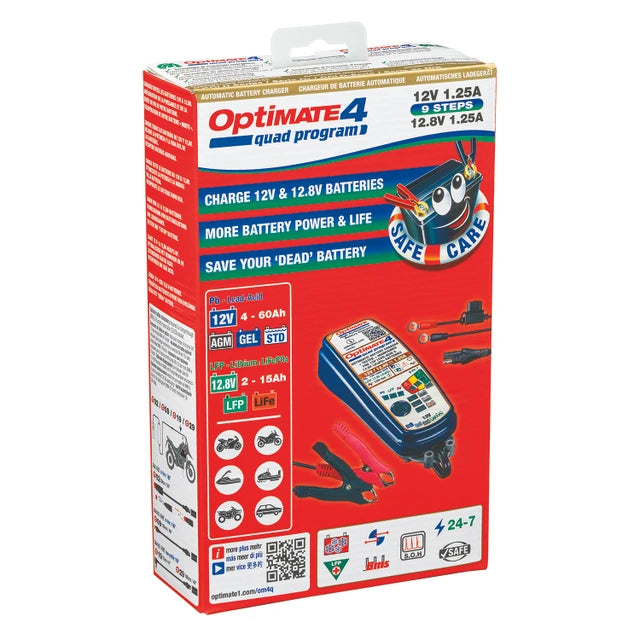

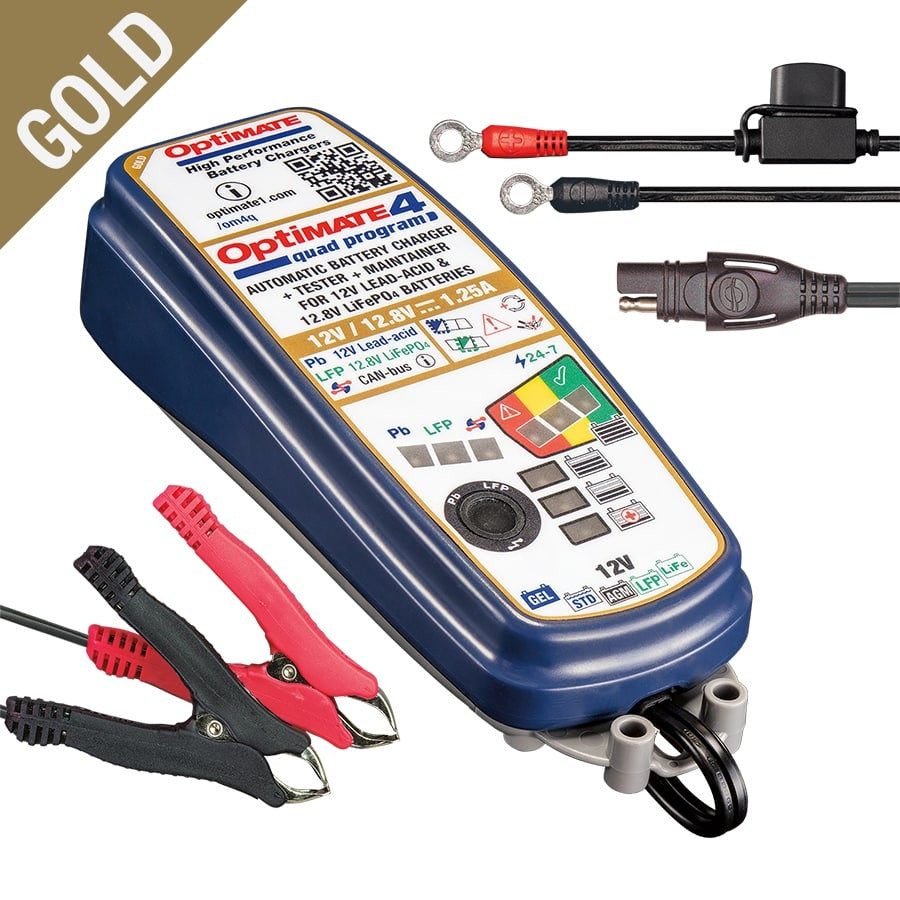

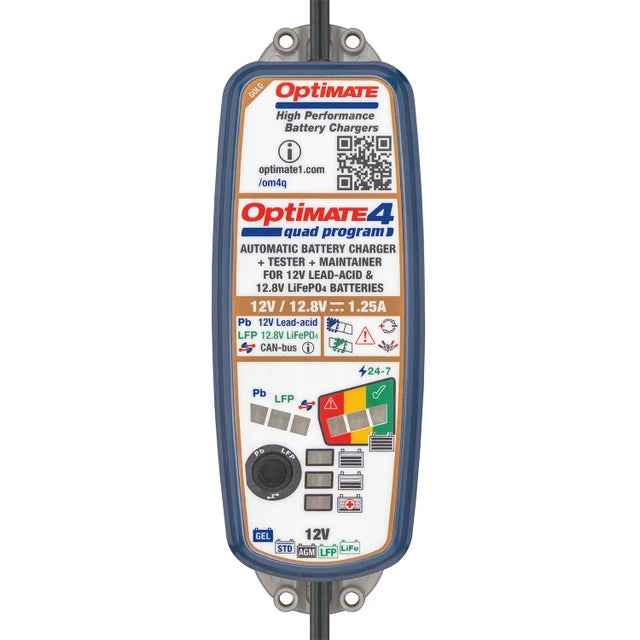

Optimate 4 Battery Charger

Description

OptiMate 4 Quad Program is the ultimate 12V battery charger for motorcycles, ATVs and powersport vehicles. It supports all 12V lead‑acid batteries (STD, AGM, GEL) and modern 12.8V lithium LiFePO4 batteries. With four selectable programs, it can charge directly to the battery or through BMW and Triumph accessory sockets (optional cable required).

Once you select your battery type, OptiMate 4 Quad automatically runs a fully controlled multi‑step charging, testing and maintenance cycle to safely restore, charge and optimise your battery.

Key Features

• Compatible with All 12V Powersport Batteries (STD, AGM, GEL, LiFePO4)
• BMW CanBus Compatible with Automatic Activation
• Smart Desulphation Recovery from 0.5V (Lead‑Acid)
• Low‑Voltage Recovery & BMS Reset for Lithium LFP Batteries
• Safe for Long‑Term Connection with Full Electronic Protection
• Maintains Battery at Optimal Charge Automatically
• Battery Health Testing Before & After Charging
• Energy‑Saving Technology (Standby < 0.5W)
• IP54 Weatherproof – Rated Down to -40°C

Specifications

• Ideal for 12V Lead‑Acid Batteries (4–60Ah)
• Ideal for 12.8/13.2V LiFePO4 Batteries (2–15Ah)
• Charging Current: 1.25A Constant
• Voltage Range: 0.5V – 14.4V
• Selectable 4‑Program Operation
• 9‑Step Charging & Maintenance Cycle
• Indoor/Outdoor Use (Down to -40°C)
• Global Input: 100–240V AC
• Weatherproof Case with Wall Mounts
• 180cm AC Lead + 180cm SAE Charge Lead

Lead‑Acid Charging Steps

• Low‑Voltage Start (from 0.5V)
• Protection & Safety Checks
• Test Before Charge
• Sulphation Recovery
• Pulsed Saving Mode
• Main Charge
• Cell Equalisation
• Test After Charge
• 24/7 Maintenance

Lithium (LiFePO4) Charging Steps

• Low‑Voltage Start
• Manual Activation
• Test Before Charge
• Low‑Volt Battery Recovery
• Cell Monitoring
• Main LFP Charge
• Final Charge Optimisation
• Test After Charge
• 24/7 Maintenance

Safety & Protection

• No Risk of Overcharging
• Safe for Vehicle Electronics
• Spark‑Suppressed Connection
• Automatic Shutdown if Short‑Circuited or Battery Disconnected

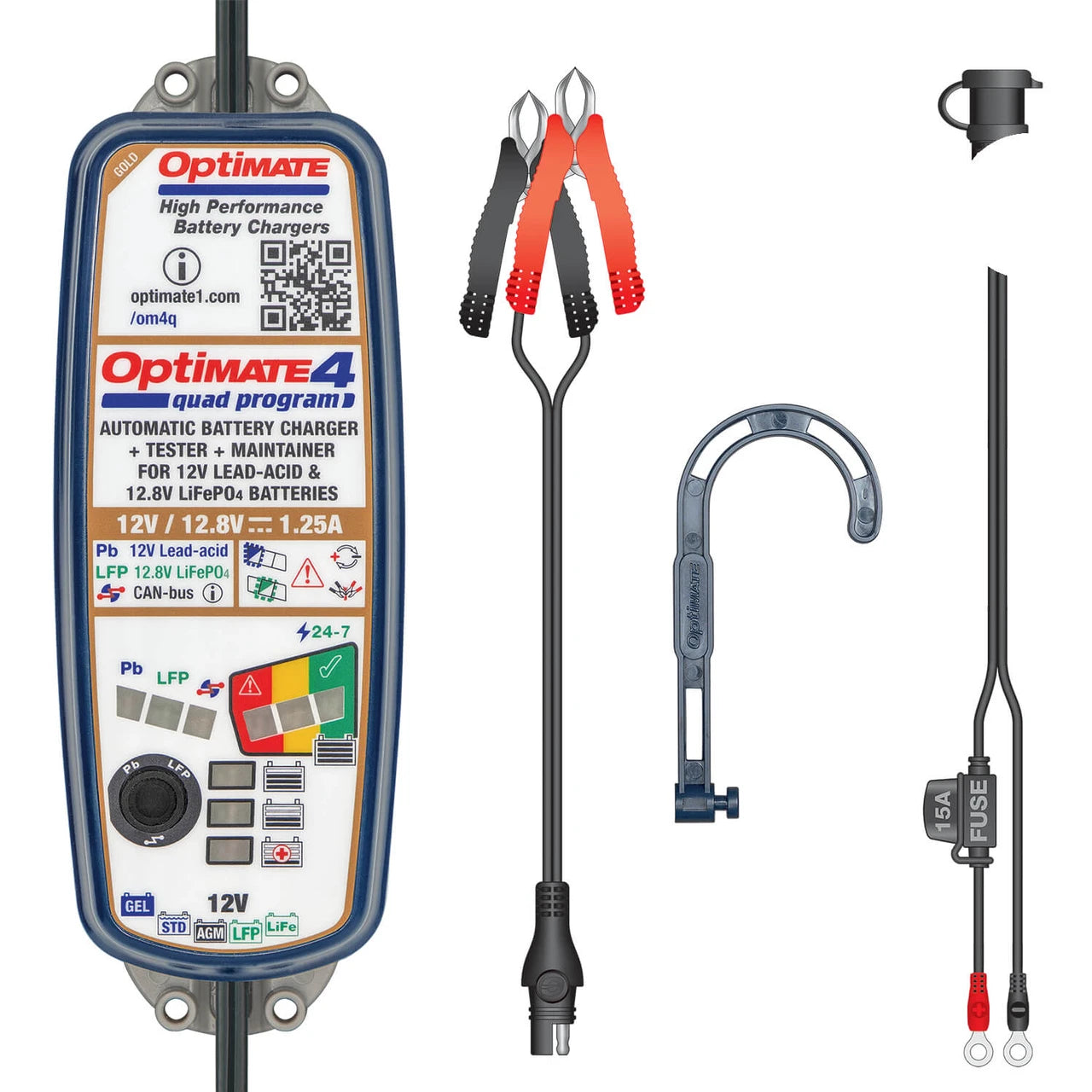

Included in the Box

• Weatherproof Battery Lead
• Battery Clip Set
• Hanging Hook
